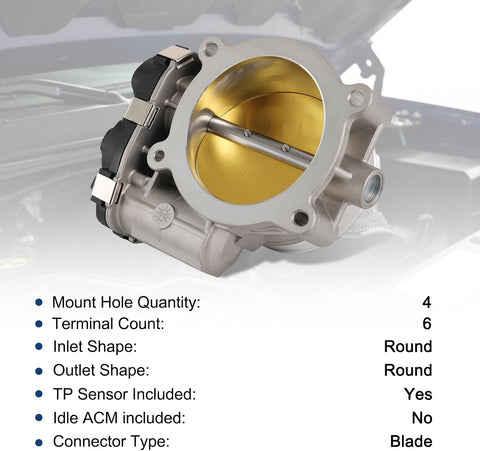

Throttle Body Compatible With 2009-2015 Chevy GMC Cadillac #12601387

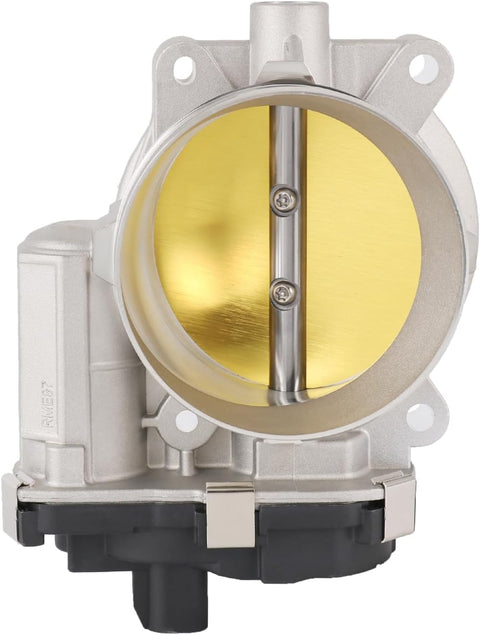

Electronic throttle body assembly for the vehicle applications listed below. Match the replacement number, engine, model year and connector with your original part before ordering.

Includes: 1 electronic throttle body assembly. Replaces: 12601387, 12629992, 217-3151, 2173151.

Specifications: Housing length 7-5/16 in.; width 5-9/16 in.; bore diameter 87 mm; main port inside diameter 3-7/16 in.; maximum air intake port diameter 3-15/16 in.; throttle plate diameter 3-7/16 in.; 4 mounting holes; 6 terminals; blade connector.

Listed Chevy fitment:

• 2009–2013 Avalanche 1500; 2009–2012 Colorado V8 5.3L
• 2009–2014 Express 1500 V8 5.3L; 2009–2016 Express 2500/3500 V8 6.0L or 4.8L
• 2009–2013 Silverado 1500 V8 6.2L, 6.0L, 5.3L or 4.8L; 2009–2015 Silverado 2500 HD/3500 V8 6.0L
• 2009–2014 Suburban 1500; 2009–2013 Suburban 2500; 2009–2014 Tahoe; 2009 Trailblazer V8 6.0L

Listed GMC fitment:

• 2009–2012 Canyon V8 5.3L; 2009 Envoy V8 5.3L
• 2009–2014 Savana 1500 V8 5.3L; 2009–2016 Savana 2500/3500 V8 6.0L or 4.8L
• 2009–2013 Sierra 1500 V8 6.2L, 6.0L, 5.3L or 4.8L; 2009–2015 Sierra 2500 HD/3500 V8 6.0L; 2011 Sierra Denali 2500 HD/3500 HD V8 6.0L
• 2009–2014 Yukon and Yukon XL 1500; 2009–2013 Yukon XL 2500

Listed Cadillac fitment: 2009–2015 CTS-V V8 6.2L; 2009–2014 Escalade and Escalade ESV; 2009–2013 Escalade EXT.

Other listed fitment: 2009 Hummer H2; 2009–2010 Hummer H3/H3T V8 5.3L; 2009 Saab 9-7X V8 6.0L or 5.3L.

Some listed vehicle applications extend through 2016, beyond the 2009–2015 range in the product title. Confirm fitment against the original part number before purchase.
